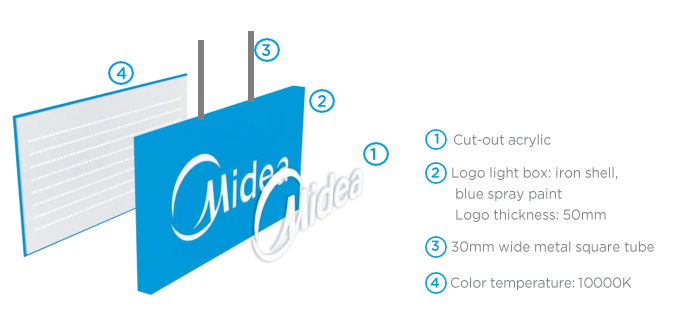

Outdoor Materia
Signage Surface: Sheet metal spray painting
Shell thickness: 1 mm hollow sheet metal, with Midea logo embedded (on the plate)
LOGO thickness: 80mm
Midea luminous characters: white acrylic substrate, transparent acrylic LOGO characters glued on the white acrylic (olymethyl methacrylate, i.e. plexiglass)
Finishing: Weather-resistant materials, anti-rust and anti-corrosion treatment of the structure, waterproof treatment of the LOGO gap, and anti-ultraviolet treatment of the surface
Lighting: LED light, color temperature 10000 K
Signage Illumination
Lighting Technique: Light shines from behind the acrylic and passes throughthe letter cut-outs.
Visual Outcome: Creates a halo-like glow around the edges of the letters. Thiseffect is achieved as light is diffused through the 5mm acrylic material, projectinga 36O-degree backlit halo effect that enhances visibility and attractiveness.

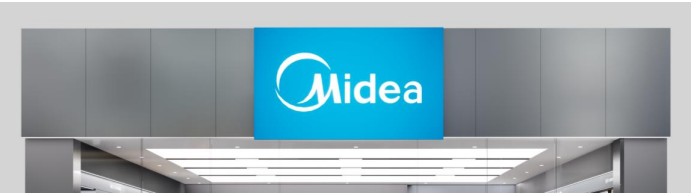

1.1 Storefront Logo Production
Outdoor Materia
Signage Surface: Sheet metal spray painting
Shell thickness: 1 mm hollow sheet metal, with Midea logo embedded (on the plate)
LOGO thickness: 80mm
Midea luminous characters: white acrylic substrate, transparent acrylic LOGO characters glued on the white acrylic (olymethyl methacrylate, i.e. plexiglass)
Finishing: Weather-resistant materials, anti-rust and anti-corrosion treatment of the structure, waterproof treatment of the LOGO gap, and anti-ultraviolet treatment of the surface
Lighting: LED light, color temperature 10000 K
Signage Illumination
Lighting Technique: Light shines from behind the acrylic and passes through the letter cut-outs.
Visual Outcome: Creates a halo-like glow around the edges of the letters. This effect is achieved as light is diffused through the 5mm acrylic material, projecting a 360-degree backlit halo effect that enhances visibility andattractiveness.

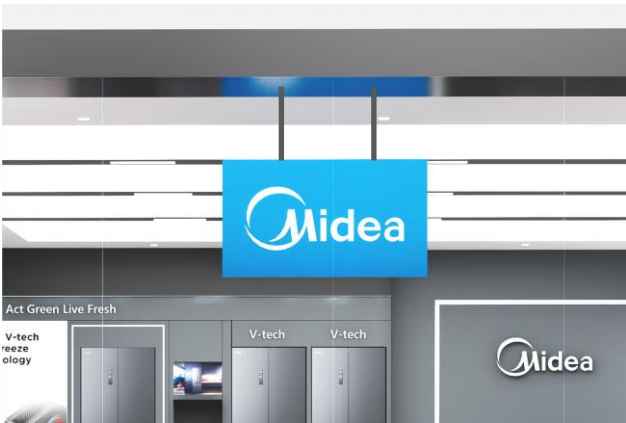

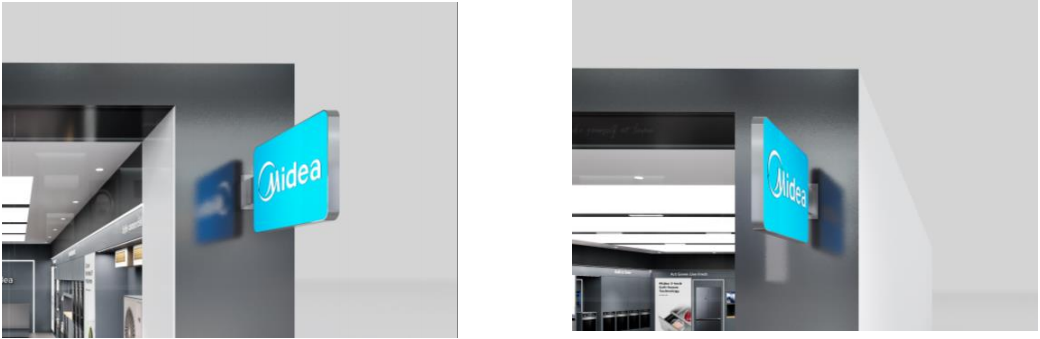

1.2 Storefront Logo Production
Outdoor Materia
Signage Surface: Sheet metal spray painting
Shell thickness: 1 mm hollow sheet metal, with Midea logo embedded (on the plate)
LOGO thickness: 80mm
Midea luminous characters: white acrylic substrate, transparent acrylic LOGO characters glued on the white acrylic (olymethyl methacrylate, i.e. plexiglass)
Finishing: Weather-resistant materials, anti-rust and anti-corrosion treatment of the structure, waterproof treatment of the LOGO gap, and anti-ultraviolet treatment of the surface
Lighting: LED light, color temperature 10000 K
Signage Illumination
Lighting Technique: Light shines from behind the acrylic and passes through the letter cut-outs.
Visual Outcome: Creates a halo-like glow around the edges of the letters. This effect is achieved as light is diffused through the 5mm acrylic material, projecting a 360-degree backlit halo effect that enhances visibility and attractiveness.

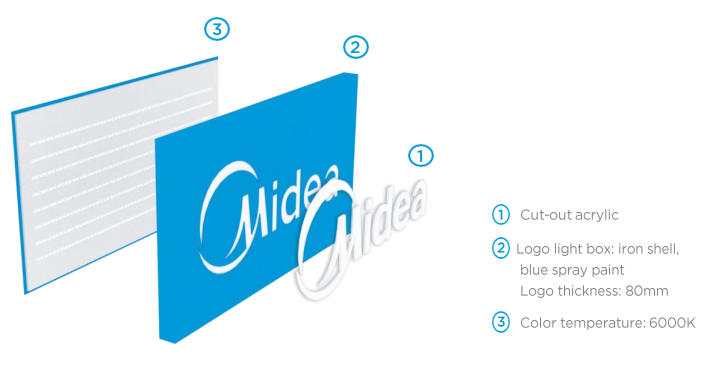

Outdoor Materia
Shell thickness: 1mm stainless steel metal surround
LOGO thickness: 80mm
Surface thickness: 8mm white acrylic plate + plastic resin glue Midea logo
Finishing: Weather-resistant material, surface anti-ultraviolet treatment
Lighting: LED light, color temperature 10000 K

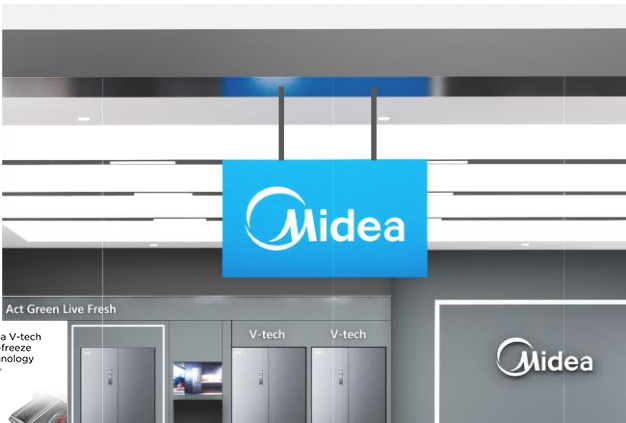

Outdoor Logo Hanging Fixing Process
Fixing process:30mm metal square tube fixation, and the Midea logo is fixed from the back through the form of a hanger (as shown in the picture)
Finishing: Weather-resistant material, surface treated with UV protection
Signage Illumination
Lighting Technique : Light shines through the letters on the acrylic board.
Visual Outcome: Frontal projection.

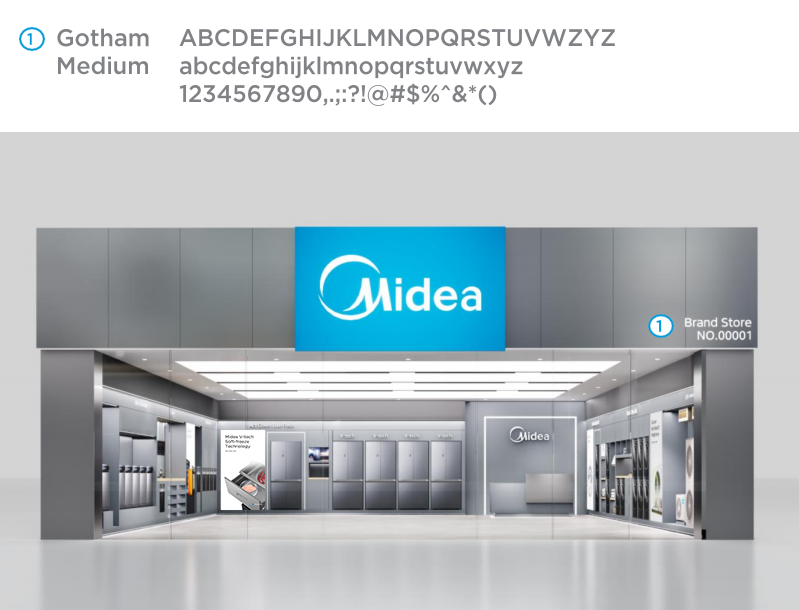

Store number name
Midea's store number uses the Gotham series font standard font.
Standard font type used: Gotham Medium Text production: Sheet metal spray white paint
Font thickness: 2mm
Finishing treatment: Weather-resistant materials, structure anti-rust and anti-corrosion treatment, surface anti-ultraviolet treatment
Fixing process: The back of the text is pasted and fixed
